Metallurgical Tundish Metering Nozzle
The metallurgical tundish metering nozzle is a core functional refractory component installed at the bottom of the tundish in the steel continuous casting process. It is also a key component for controlling molten steel flow in small billet continuous casting systems, directly determining the speed and stability of molten steel flow from the tundish to the mold.
Products Description

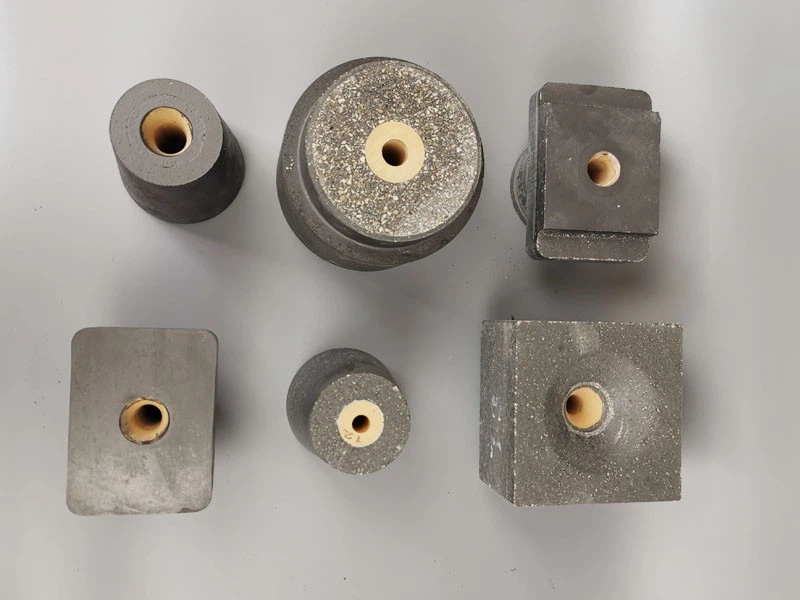

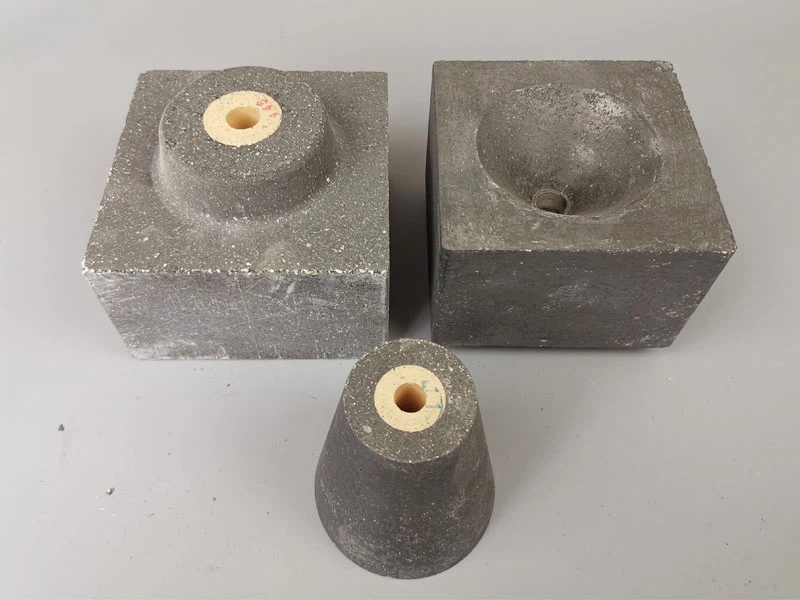

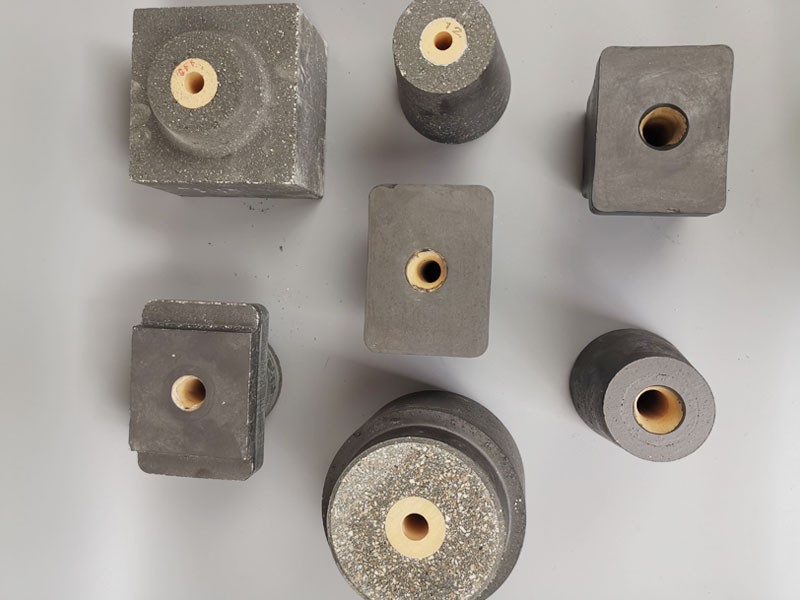

The Metallurgical Tundish Metering Nozzle (also called sizing nozzle, bore nozzle, or Zirconia insert nozzle) is a critical flow control component installed at the bottom of a tundish in continuous steel casting. It precisely regulates the molten steel flow rate from the tundish into the mold.

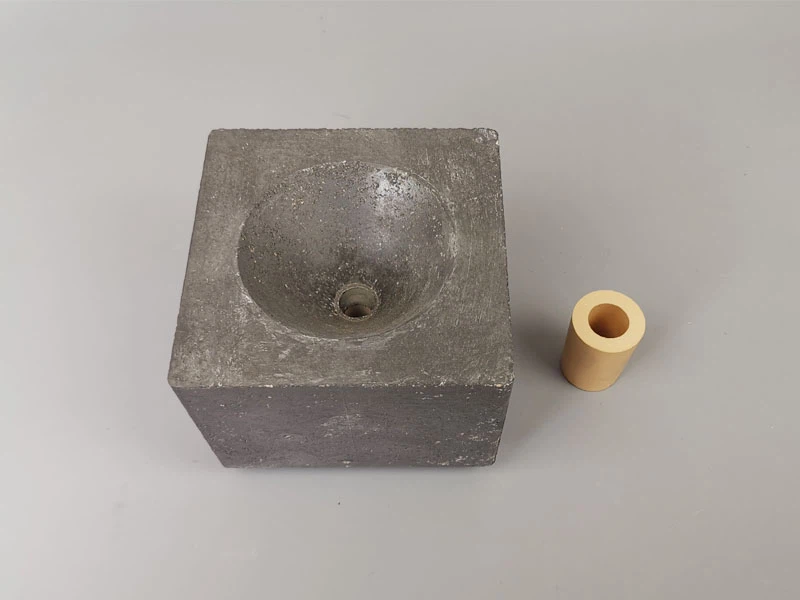

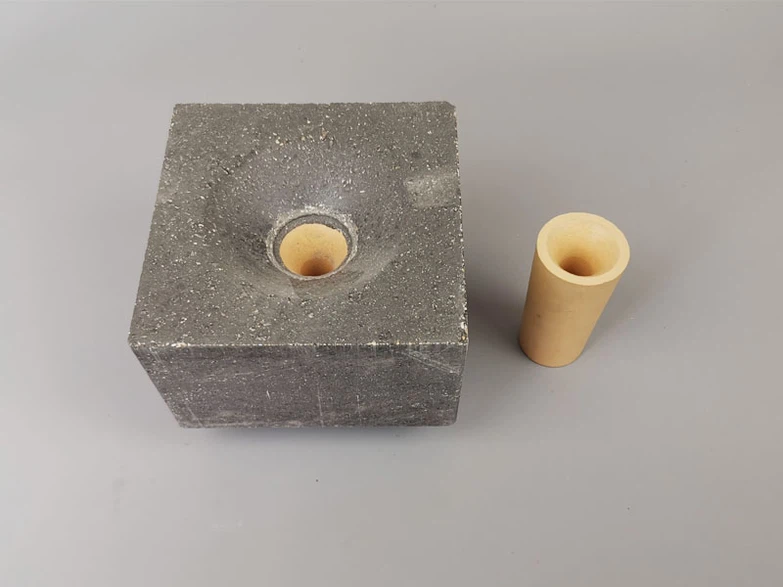

Our nozzle features a press‑molded composite structure – a high‑density Zirconia core combined with an outer Alumina jacket. Unlike traditional cement‑connected nozzles, our press‑molded design eliminates the risk of steel breakout caused by cement joint erosion, significantly improving casting safety and nozzle service life.
Key Technical Specifications
| Parameter | Value / Range |
|---|---|
| Material | Zirconia (ZrO₂) core + High‑alumina jacket |
| ZrO₂ Content (core) | ≥ 94% |
| Bulk Density (core) | ≥ 4.85 g/cm³ |
| Apparent Porosity (core) | ≤ 11% |
| Cold Crushing Strength | ≥ 500 MPa |
| Thermal Shock Resistance (1100°C → water, cycles) | > 20 cycles |
| Refractoriness Under Load (RUL, 0.2MPa) | > 1700°C |
| Available Inner Diameters | 1.5 mm – 6.0 mm (other sizes on request) |
| Outer Jacket Material | Press‑molded Al₂O₃‑based (no cement) |
| Total Length | 80 – 150 mm (customizable) |
Above data are typical values. Please contact us for a specific datasheet of your required size.
Core Advantage
Zero breakout risk
Press‑molded integration – no cement joint to erode or fail.
01
Longer casting sequence
High thermal shock resistance and corrosion resistance extend nozzle life by 20‑30% compared to conventional nozzles.
02
Stable flow control
Precise bore geometry and consistent material density ensure constant steel flow rate, reducing rejects.
03
Cost effective
Composite design lowers material cost vs. full zirconia, while improved durability reduces nozzle changes.
04
Easy installation
Standard dimensions compatible with most tundish slide gate systems; no on‑site cement mixing required.
