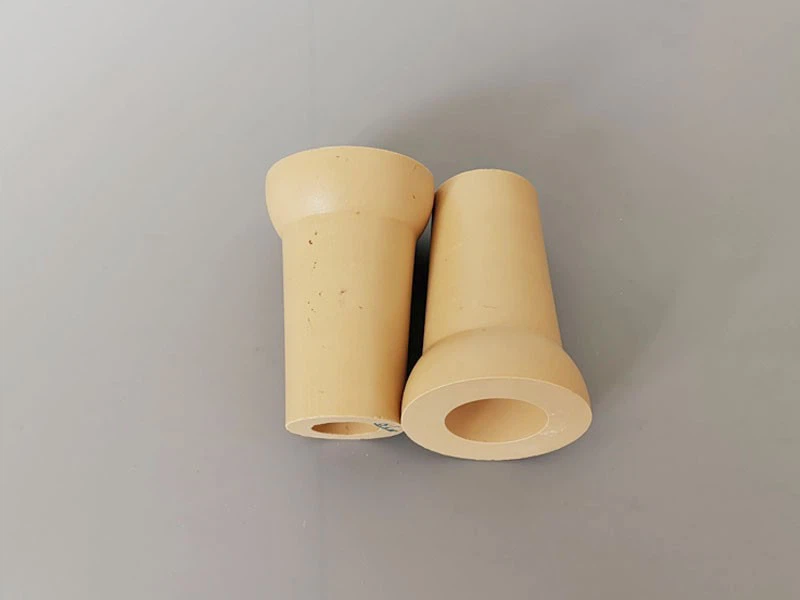

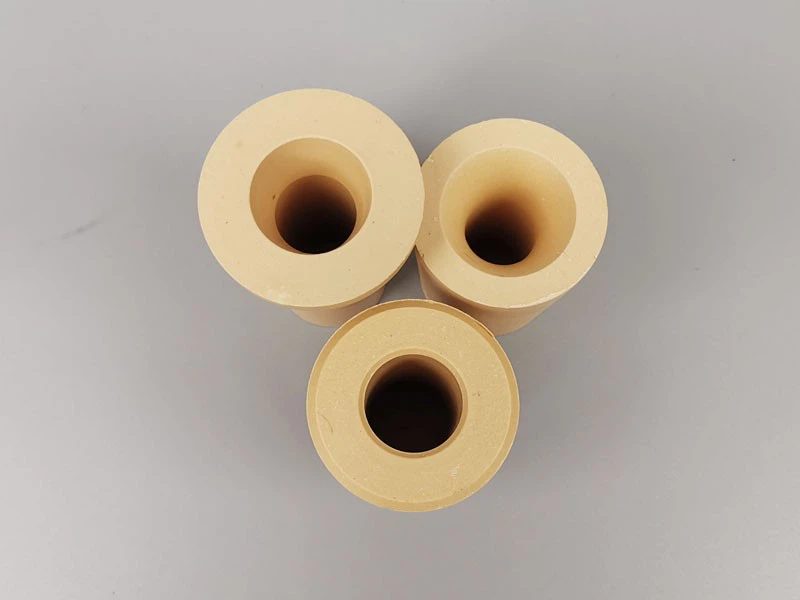

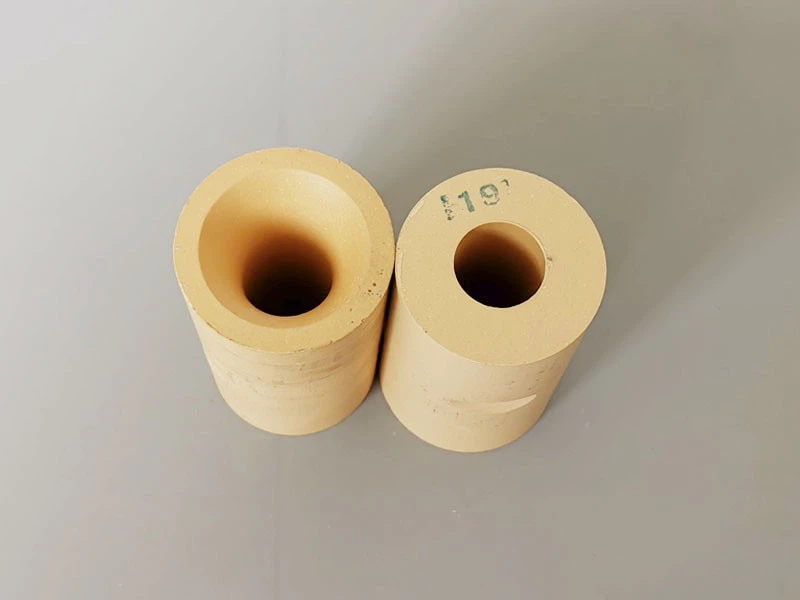

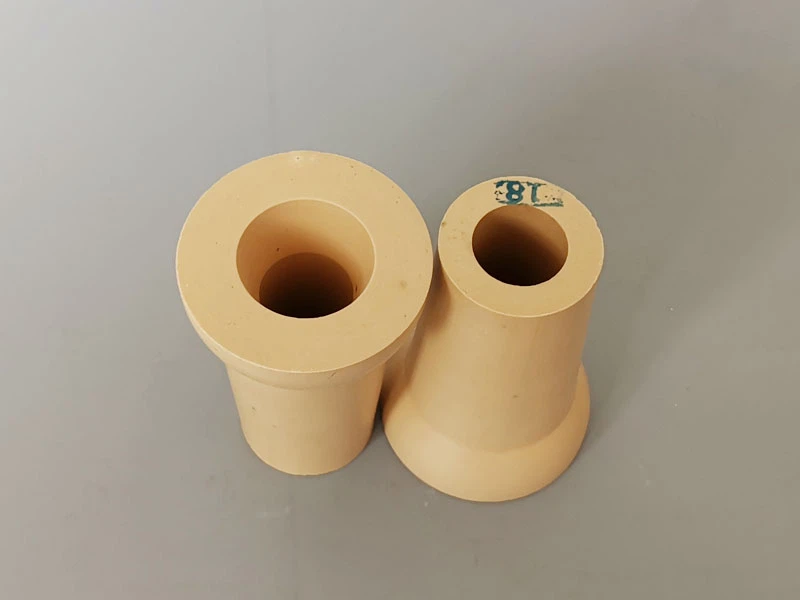

Zirconia Metering Nozzle Insert
Specializing in the production of zirconia metering nozzle inserts. Manufactured using a compression molding process to eliminate the risk of steel leakage. Suitable for continuous casting ladles, offering lower costs and a longer service life.
Products Description
The tundish-to-mold flow rate determines billet quality. The part that actually meters that flow? A small ceramic insert inside the metering nozzle. If it wears fast, the flow drifts – and you get level fluctuation, slag entrainment, or cracks.
Zirconia metering nozzle inserts (steelmaking grade) are made from partially stabilized zirconia (PSZ), isostatically pressed and sintered to >98% density. They sit inside the metering nozzle or upper nozzle, directly contacting molten steel at 1550°C+.
Technical Specifications (Typical Values)
| Item | Specification |
|---|---|
| ZrO₂ Content | ≥ 94% |
| Bulk Density | 5.0 – 5.2 g/cm³ |
| Apparent Porosity | 10% – 12% |
| Cold Crushing Strength | ≥ 500 MPa |
| Thermal Shock Resistance (1100°C → Water Quench) | > 10 cycles without cracking |
| Inner Bore Diameter Range | Φ12mm – Φ25mm (customizable per drawing) |
| Applicable Steel Grades | Carbon steel, low-alloy steel, calcium-treated steel, stainless steel |
Application Scenarios and Actual Performance
In continuous casting machines for slabs, billets, and rectangular billets, this insert is widely used inside sizing nozzles or quick-change nozzles. According to feedback from multiple steel mills:
- Expansion Rate: After 4 hours of continuous casting, the inner bore expansion is less than 0.5 mm.
- Service Life: When used with a quick-change mechanism, a single insert can maintain stable flow control for 6–8 hours.
- Safety: After adopting cement-free, press-molded composite nozzles, incidents of molten steel leakage caused by loose inserts have been reduced to zero.
Why Choose Us
Please feel free to contact our technical sales team and provide your ladle operating parameters (steel grade, pouring temperature, pulling speed, and pouring duration per ladle). We will recommend the most cost-effective zirconia sizing nozzle insert solution for your needs.
Our dedicated technical team works directly with you to address your needs-not just standard sales representatives.
Our patented compression molding process has earned repeat business from numerous clients.
24/7 online technical support is available; even if you don't place an order, we'll help diagnose any issues.
We respond to 100% of inquiry emails manually-we never use automated or generic replies.
About Anyang Changtai Silicon Industry
Anyang Changtai Silicon Industry Co., Ltd. specializes in the research, development, and manufacturing of functional refractory materials for continuous casting. Our product range includes zirconia sizing nozzles, sliding nozzles, and quick-change nozzles. We not only offer standard products but also specialize in providing customized inner bore curve designs for inserts based on parameters such as the arc radius of the customer's continuous casting machine, steel grade, and pulling speed, helping you achieve precise control over steel flow.
