Ladle Zirconia Slide Gate Plate
Ladle zirconia slide plate paired with zirconia bore inserts. The zirconia ring works as the wear-resistant core against molten steel and slag erosion for high-heat casting.
Products Description

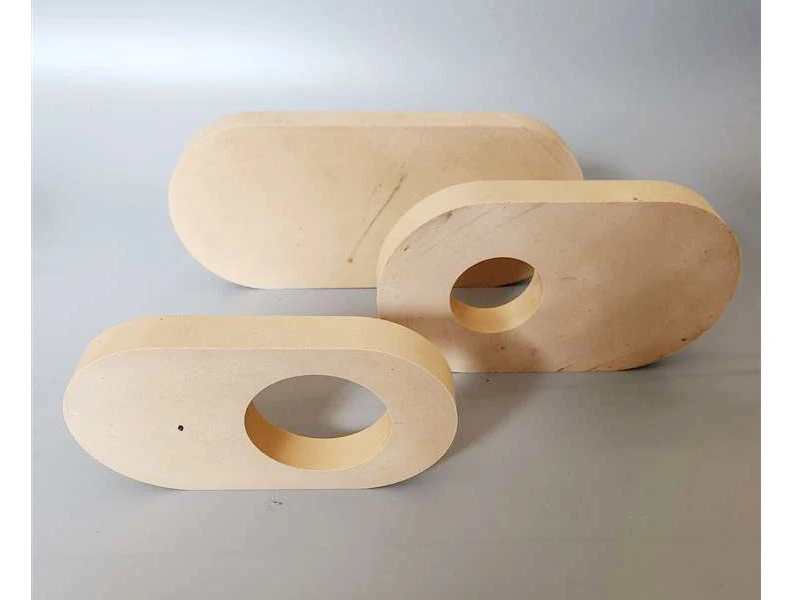

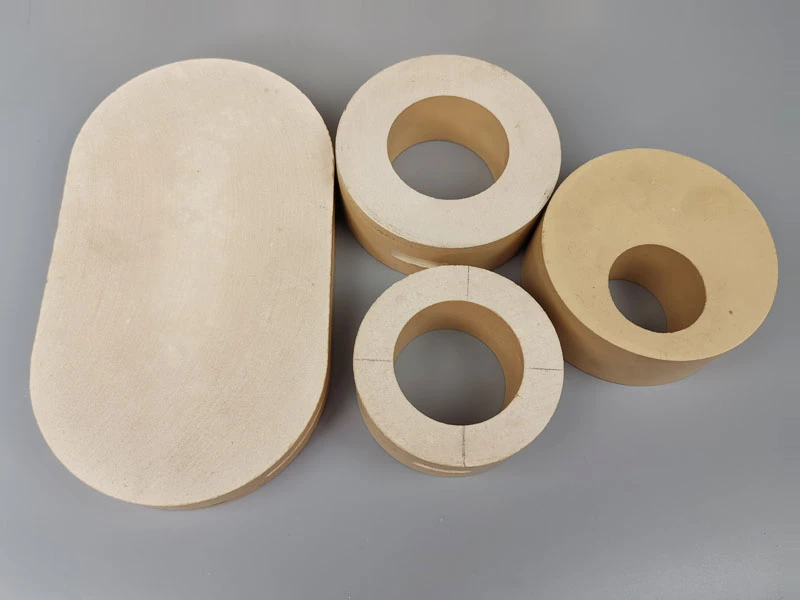

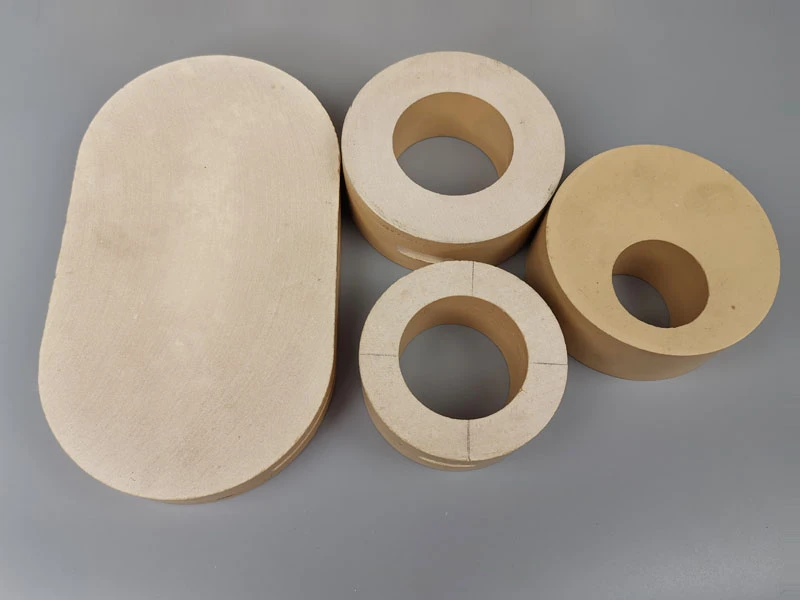

This picture shows our ladle zirconia slide gate plate matched with zirconia bore inserts. The slide plate body is the oval refractory piece, while the ring-shaped zirconia inserts are embedded into the flow hole of the plate. It is a critical refractory component fitted to the ladle sliding nozzle system for steel continuous casting.
Traditional alumina-carbon slide plates suffer fast bore wear under high casting heats, especially for alloy steel, stainless steel and calcium-treated steel. Changtai's zirconia reinforced slide plate solves this pain point by fitting a high-performance zirconia insert in the molten steel passage.
Technical Reference Data
| Item | Specification |
|---|---|
| Max working temperature | 1580 ~ 1750 ℃ |
| Bulk density | 2.90 ~ 3.30 g/cm³ |
| Cold crushing strength | 90–170 MPa |
| Apparent porosity | ≤12 % |
| ZrO₂ content (zirconia insert) | 25% ~ 95% (customizable) |
| Sliding surface flatness | ≤0.05 mm |
Application
- Flow control for molten steel in ladle continuous casting
- Suitable for carbon steel, alloy steel, stainless steel, high manganese steel and calcium-treated steel
- Compatible with 30t ~ 250t steel ladles and most mainstream sliding nozzle mechanisms
- Zirconia inserts can also be used for tundish slide gate plates upon request
Core Advantages
Erosion and slag resistance
Zirconia insert has resistance to molten steel scouring and slag corrosion. It supports higher casting heats than standard Al-C slide plates, reduces ladle refractory replacement frequency and cuts downtime.
01
Thermal shock stability
The composite material formula bears temperature swings from room temperature up to 1750°C. It limits crack propagation and spalling under repeated thermal cycles, and avoids production shutdown.
02
High mechanical strength at high temperature
High bulk density and cold crushing strength keep the plate stable under molten steel static pressure and clamping force from the sliding mechanism. It does not deform or soften during long-time casting.
03
Precision machining & fitting performance
Sliding surface receives grinding with flatness control. Zirconia inserts are machined to match the plate bore. Fit between upper and lower plates prevents steel penetration between sliding faces.
04
About Changtai
We are always at your service when you need
Changtai is a manufacturer of continuous casting zirconia refractories. We produce zirconia slide gate plates, zirconia bore inserts and matched sliding nozzle refractories. We have experience working with steel mills and understand failure issues of slide plates and zirconia inserts on site.
We accept trial orders for plant testing, followed by mass bulk supply. Our technical team offers material recommendation, inspection certificates and after-sales technical support. Our products have been exported to multiple overseas metallurgical plants.
