MNC Lower Exchange Nozzle

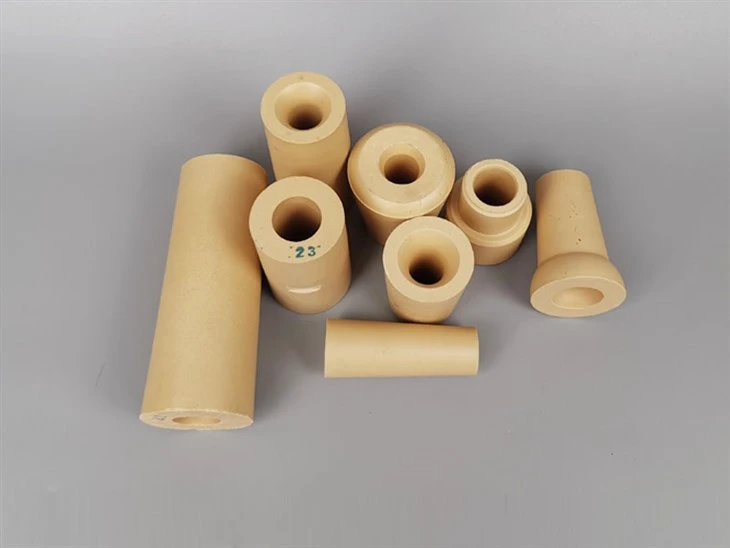

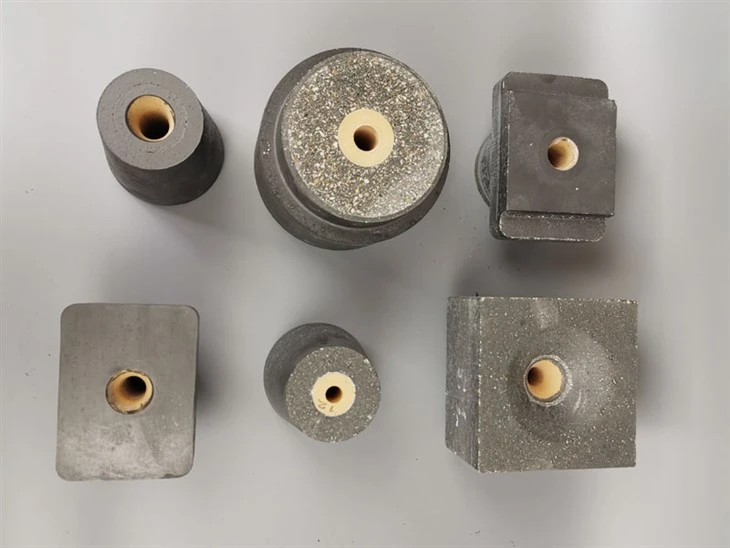

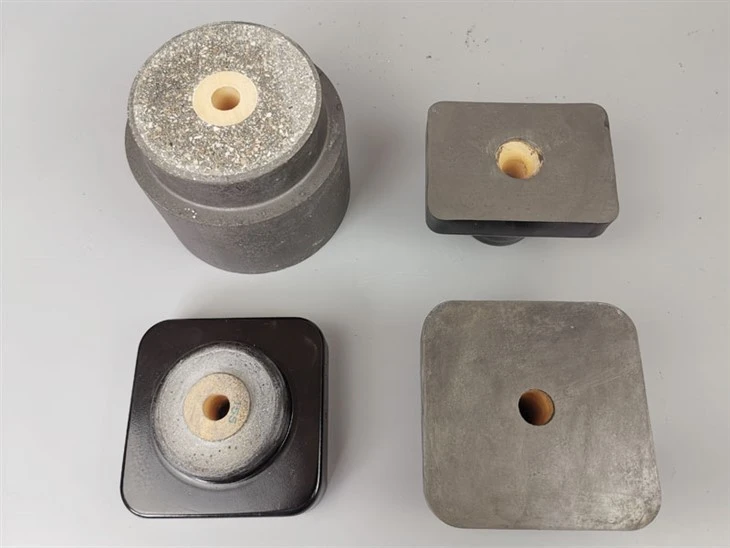

MNC Lower Exchange Nozzle is the movable exchangeable lower refractory part matched with Interstop MNC tundish quick-change system for continuous casting production lines. It adopts composite layered structure: high-purity stabilized zirconia inner runner insert + high-density alumina-carbon outer body. We supply two forming processes (isostatic pressing & integral casting) and multiple zirconia content grades.
Products Description
MNC full name stands for Interstop fast tundish nozzle replacement mechanism. MNC Lower Exchange Nozzle is the sliding movable lower nozzle component of the whole MNC system, matched with fixed MNC upper nozzle installed at tundish bottom. It forms seamless flat sealing contact surface with upper nozzle after hydraulic pushing, realizing stable molten steel metering and online rapid replacement without interrupting casting process
Why Choose Our MNC Lower Exchange Nozzle?
Complete material grade matrix: Zr70~Zr95 zirconia inserts matching carbon steel, alloy steel, stainless steel production separately.
Strict flatness control: Modified mold technology to guarantee sealing surface precision, eliminate steel leakage risk.
Verified long service life: Mass application in large overseas steel mills, single nozzle max 108 heats stable service.
Full supporting accessories: Matching MNC upper nozzle, sealing refractory blind plate one-stop supply.
Parameters
| Item | Zr85 Composite Standard Index |
|---|---|
| ZrO₂ Content (Insert) | ≥85% |
| Al₂O₃ (Outer Body) | ≥75% |
| Bulk Density ≥ | 2.95 g/cm³ (Outer) / 4.35 g/cm³ (Insert) |
| Apparent Porosity ≤ | 18% |
| Refractoriness | ≥1850℃ |
| Thermal Shock Resistance (1100℃ Water Cooling) | ≥5 times without crack |
| Sealing Surface Flatness Tolerance | ≤0.5mm |
Common Usage Problems & Matching Solutions
Seam steel leakage between upper and lower nozzle contact surface
Solution: Select isostatic pressing product with precision grinding flat surface, check installation clamping force of MNC sliding mechanism.
Serious inner hole clogging, frequent flow reduction
Solution: Upgrade to 95% high-purity zirconia insert nozzle, optimize tundish argon blowing system synchronously.
Nozzle outer body crack after multiple replacement cycles
Solution: Adopt isostatic press craft with better thermal shock resistance, avoid violent cold water flushing during nozzle changing.
Fast inner hole enlargement leading to unstable casting speed
Solution: Increase zirconia content grade from Zr80 to Zr85/Zr95 to strengthen anti-scouring performance.
Our Factory
why choose us?
why choose us?
Mass spot stock of standard sizes: Conventional MNC lower nozzle specifications in stock,
Professional refractory R&D team: Custom exclusive zirconia formula for high-alloy & stainless steel casting conditions.
Complete MNC system matching capacity: Supply full set MNC upper nozzle + lower nozzle + blind plate supporting refractories.
Global steel mill delivery experience: Export to Russia, Southeast Asia, Middle East, Africa large metallurgical enterprises stably.
one-stop solution
professional team
high quality
